(RF Z10-RL) REPEATER 700 5G
- Suitable for all mobile phone providers 700 MHz (5G)
- Compact signal booster for use at home and offices
- Supplied with antennas, coaxial cables and accessories
- Easy to install. Ready for use
- Free of interference. CE! approved
- Low energy consumption
- Indoor coverage up to max. 300 sqm
- Art.nr. RF Z10-RL
- Price excl. VAT

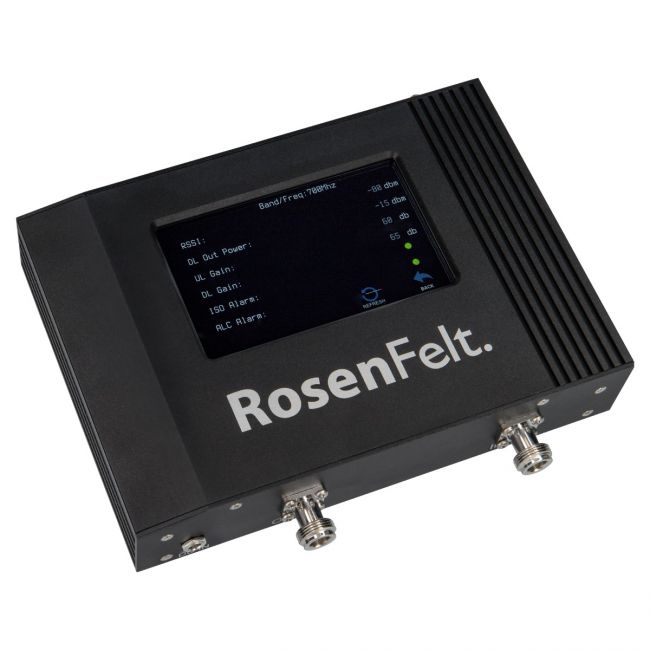

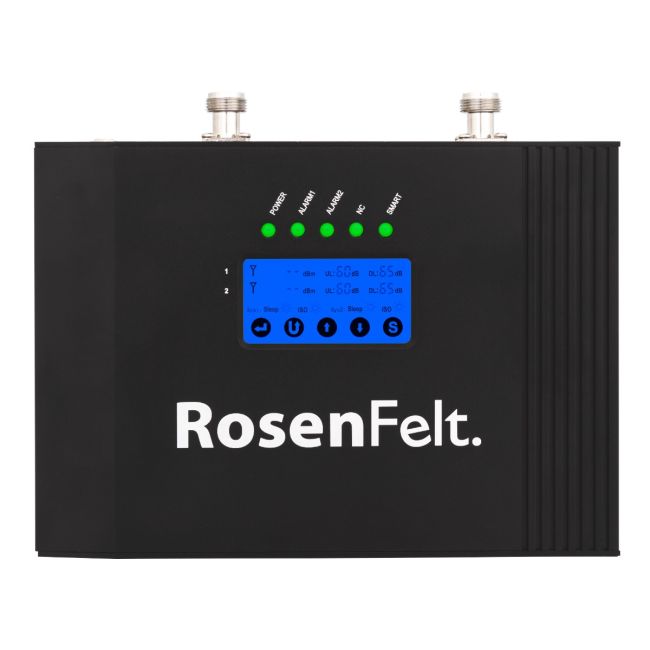

This mobile booster kit has been specifically assembled for use at home and in spaces such as containers, cellars, garages and offices. The mobile booster is delivered ready to use and comes with all necessary accessories. The Rosenfelt RF Z10-RL mobile booster kit receives 700 MHz (5G) mobile network signal by using the external antenna. The signal is transmitted through the coaxial cable to the mobile booster (also known as phone amplifier or GSM repeater) which amplifies the signal and sends it through the internal antenna to your mobile phone. This 700 MHz (5G) booster comes with a small, practical screw-on internal antenna. The repeater has a maximum indoor coverage of approximately 300 m2. The Rosenfelt RF Z10-RL guarantees an interference free signal at home or in the office.
The repeater is easy to install and comes complete with:
- Clear instruction manual
- External antenna (7dBi)
- 700 MHz mobile booster suitable for 5G Internet network
- 10 meters coaxial cable + connectors
- Internal antenna (5dBi)
After installing the mobile booster, you will experience straightaway how wonderful it is to have an optimal mobile signal indoors again.
1. Every internal antenna has a maximum coverage of 100 up to 300 m2, regardless of the range and power of the mobile booster.
2. You always need a splitter + extra coaxial cable when you want to install a second internal antenna.
3. Use one internal antenna per room under normal circumstances.
What should I do if I have a weak to moderate outside signal?
When assembling the sets, we have assumed that you have good mobile coverage outside your house or premises. If your mobile coverage is weak to moderate, we advise you to upgrade the outside antenna (to a higher dBi value) to guarantee good coverage. The standard antenna will then be replaced by the upgrade and will directly be added to the order amount.
|Specifications||Suitable for 5G 700 MHz Network|
|Coverage area||up to 300 sqm.|
|Gain Up||60 dB (uplink 703 - 733 MHz)|
|Gain Down||65 dB (downlink 758 - 788 MHz)|
|Main Power||AC 100 ~ 240 V, 50/60 Hz, + DC Adapter 12V 5A|
|Dimensions||310 x 250 x 40 mm|
|Wavelength MHz||700 MHz|
