GSM REPEATER 900 + 800 MHz (Voice + 4G / LTE internet) - 4.000 m²

€1,299.00 €1,749.00
In stock
  • Suitable for all European 900 + 800 MHz providers
  • Powerful all-in-one repeater for houses and buildings
  • Supplied with antennas, coaxial cables and accessories
  • Easy to install. Ready for use
  • Free of interference. CE! approved
  • Low energy consumption
  • Indoor coverage up to max. 4000 m2
  • RF-EL23-L
  • Price excl. VAT
Customize your order (Optional)

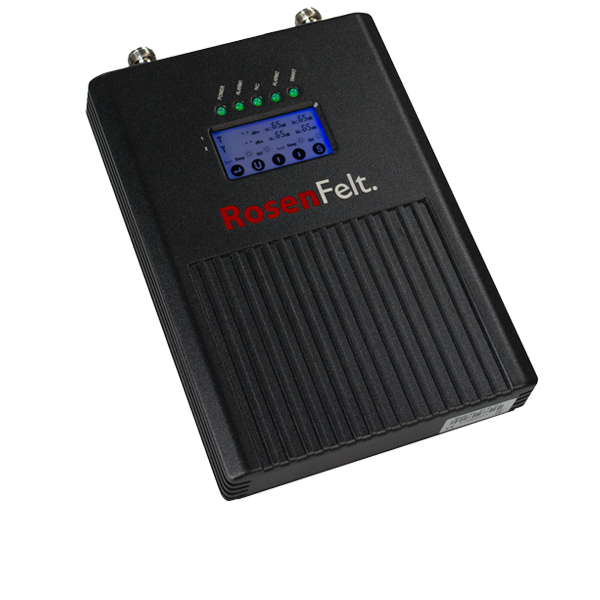

This mobile booster kit has been specifically assembled for use at home and in spaces such as containers, cellars, garages and offices. The mobile booster is delivered ready to use and comes with all necessary accessories. The Rosenfelt RF-EL23-L mobile booster kit receives the GSM 900 MHz and LTE 800 MHz (4G) mobile network signal by using the external antenna. The signal is transmitted through the coaxial cable to the mobile booster (also known as phone amplifier or GSM repeater) which amplifies the signal and sends it through the internal antenna to your mobile phone. This 800 (4G) / 900 MHz booster comes with a small, practical screw-on internal antenna. The repeater has a maximum indoor coverage of approximately 4000 m2. The Rosenfelt RF-EL23-L guarantees an interference free signal at home or in the office.

The repeater is easy to install and comes complete with:

  • Clear instruction manual
  • External antenna (7 dBi)
  • 800 / 900 MHz mobile booster suitable for GSM + EGSM and LTE (4G) networks
  • 10 meter coaxial cable + connectors
  • Internal antenna (5 dBi)

After installing the mobile booster, you will experience straightaway how wonderful it is to have an optimal mobile signal indoors again.

1. Each internal antenna has a maximum coverage capacity of 100 up to 300 sqm, regardless of the range and power of the mobile booster.
2. You always need a splitter + extra coaxial cable when you want to install a second internal antenna.
3. Use one internal antenna per room under normal circumstances.

What should I do if I have a weak to moderate outside signal?
When assembling the sets, we have assumed that you have good mobile coverage outside your house or premises. If your mobile coverage is weak to moderate, we advise you to upgrade the outside antenna (to a higher dBi value) to guarantee good coverage. The standard antenna will then be replaced by the upgrade and will directly be added to the order amount.

More Information
Specifications Suitable for GSM + EGSM 900 MHz and LTE 800 MHz (4G) Network
Coverage area up to max. 4000 m²
Gain Up 65 dB (uplink 880 - 915 // 830 - 865 MHz)
Gain Down 70 dB (downlink 925 - 960 // 790 - 825 MHz)
Output power 23 dBm
Main Power AC 100 ~ 240 V, 50/60 Hz, + DC Adapter 12V 5A
Dimensions 240 x 170 x 35 mm
Wavelength MHz 800 MHz / 900 MHz
