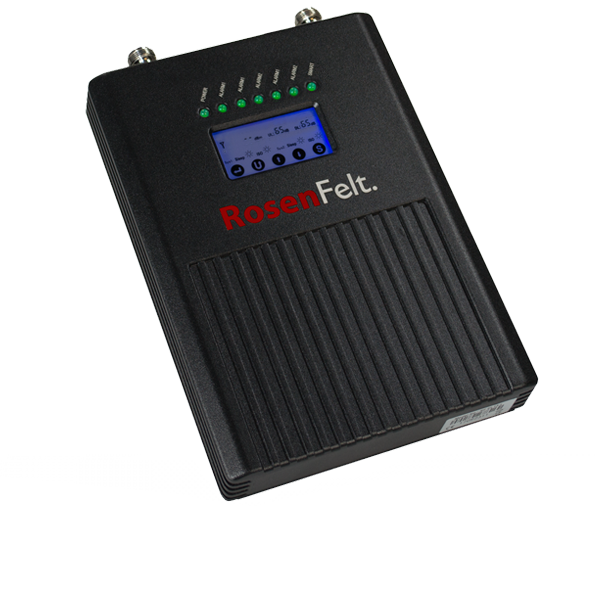

3-BAND INLINE REPEATER (all European providers) - Calls and 4G mobile internet (20.000 m²)
€1,599.00
In stock
SKU
RF LED20L-T
- Call us for a customized offer!
- Suitable for all European networks (GSM VoLTE calls and 4G mobile data)
- Powerful all-in-one mobile booster for houses and buildings
- Easy to install. Ready for use
- Free of interference. CE! approved
- Low energy consumption
- Indoor coverage up to max. 20.000 sqm
- Art.nr. RF LED20L-T
- Price excl. VAT
This 3-band Inline repeater, very powerfull, has been specially designed for installation in large venues such as: office buildings, hotels, exhibition halls, sports venues, conference halls, underground parks, warehouses, hospitals... This device completes any of our GSM and 4G repeaters and allows deployment of an extra line of 4 to 8 indoor antennas (depending on cabling configuration) allowing a total coverage worth 4000 sqm, per inline repeater.
Extremely flexible solution to deploy, several inline repeaters can be connected after a single GSM 4G repeater in order to create a very large system composed of multiple indoor antennas.
Please contact us for details and assistance on this 3-band 800+900+1800 MHz inline repeater Rosenfelt RF LED20L-T. We are happy to assist further.
| Specifications | Suitable to all European networks for signals GSM E-GSM GPRS 4G 4G+ LTE LTE advanced VoLTE simultaneously : 800 + 900 + 1800 MHz |
|---|---|
| Coverage area | up to max. 2000 m2 |
| Gain Up | 65 dB (uplink 832 - 862 // 925 - 960 // 1800 - 1880 MHz) |
| Gain Down | 70 dB (downlink 790 - 821 // 880 - 915 // 1700 - 1785 MHz) |
| Output power | 20 dBm |
| Main Power | AC 100~240 V, 50/60 Hz, DC 12V 5A Adapter |
| Dimensions | 240 x 170 x 35 mm |
| Wavelength MHz | 800-900-1800-2100-2600 3G/4G 5-band |
