5-BAND INLINE REPEATER (all European providers) - Calls and 3G/4G mobile internet (20.000 m²)
5-BAND INLINE REPEATER (all European providers) - Calls and 3G/4G mobile internet (20.000 m²)
SKU: RF-20-5BT-L
Out of Stock
- Call us for a customized offer!
- Suitable for all European networks (calls and 3G / 4G mobile data)
- Powerful all-in-one mobile booster for houses and buildings
- Supplied with antennas, coaxial cables and accessories
- Easy to install. Ready for use
- Free of interference. CE! approved
- Low energy consumption
- Indoor coverage up to max. 20.000 sqm
- Art.nr. RF-20-5BT-L
- Price excl. VAT
Price excl. VAT
Incl. VAT
€0.00

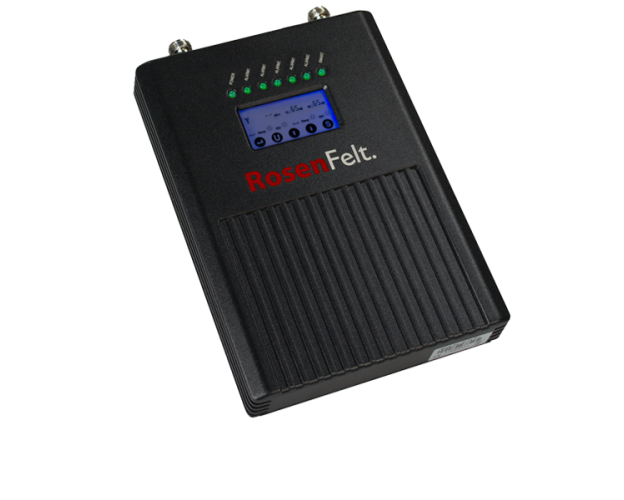

This 5-band Inline repeater, very powerfull, has been specially designed for installation in large venues such as: office buildings, hotels, exhibition halls, sports venues, conference halls, underground parks, warehouses, hospitals... This device completes any of our GSm 3G and/or 4G repeaters and allows deploymentof an extra line of 4 to 8 indoor antennas (depending on cabling configuration) allowing a total coverage worth 2000 sqm, per inline repeater.
Extremely flexible solution to deploy, several inline repeaters can be connected after a single GSM 3G 4G repeater in order to create a very large system composed of multiple indoor antennas.
Please contact us for detils and assistance on this 5-band inline repeater Rosenfelt RF 20-5BT-L. We are happy to assist further.
| Specifications: | Suitable to all European networks for signals GSM E-GSM GPRS CDMA 3G WCDMA 4G 4G+ LTE LTE advanced VoLTE simultaneously : 800 + 900 + 1800 + 2100 +2600 MHz |
|---|---|
| Coverage area: | up to max. 1500 m2 |
| Gain Up: | 65 dB (uplink 832 - 862 // 925 - 960 // 1800 - 1880 // 2110 - 2170 // 2500 - 2570 MHz) |
| Gain Down: | 65 dB (downlink 790 - 821 // 880 - 915 // 1700 - 1785 // 1920 - 1980 // 2620 - 2690 MHz) |
| Output power: | 20 dBm |
| Main Power: | AC 100 ~ 240 V, 50/60 Hz, DC Adapter 12V 5A |
| Dimensions: | 240 x 170 x 35 mm |
| Wavelength MHz: | 800-900-1800-2100-2600 3G/4G 5-band |
